INTRODUCING

The EnviroKlenz Source Capture Air System

Trap and deactivate microorganisms, pathogens, VOCs, and odors directly at the source

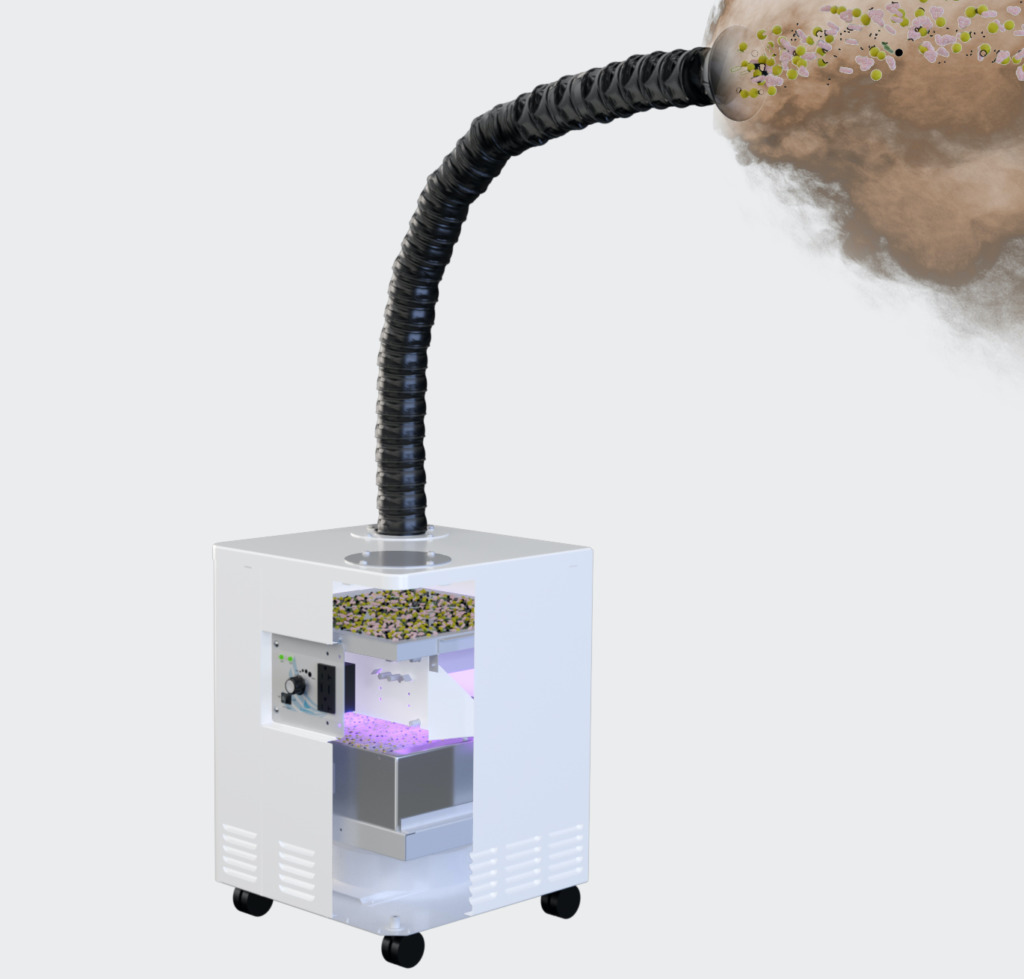

08 Cut Section Image Render
Design like no other

The EnviroKlenz Source Capture System utilizes the patented EnviroKlenz air cartridge to trap and deactivate microorganisms, pathogens, VOCs, and odors. The adjustable hose allows the user to manipulate the device to draw air from the source point.

Real World Application

EnviroKlenz Source Capture Air Purifier is used in a wide range of environments to mitigate toxic and noxious chemicals, odors, and pathogens. This new device is an application-specific system to meet the growing need in the dental and related medical industries for source pathogen, aerosolized biologicals, chemical, and odor reduction, capture, and neutralization.

01 Dental Office Render

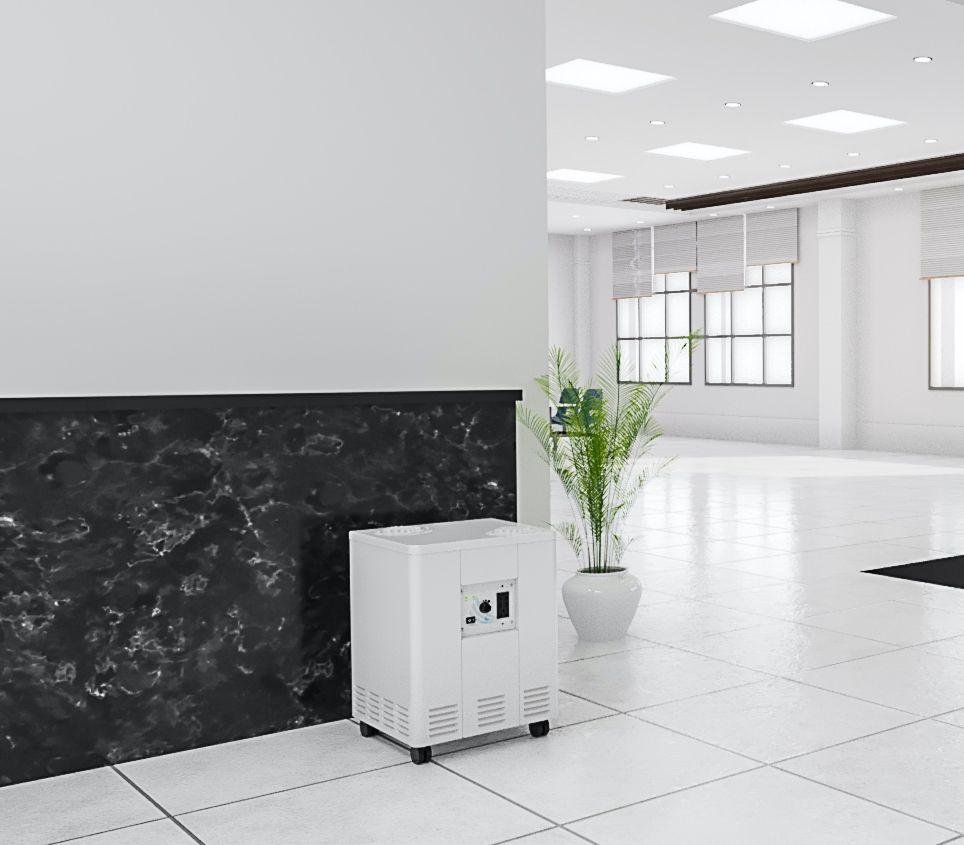

04 Medical Waiting Room Render
Versatility

Designed for any use, the adjustable arm allows the user to manipulate the device to draw air from the source point. When the device is not being used for critical source capture, it can additionally be removed and converted to a total room air purifier.

Five-Year Warranty

Comes standard with an industry-leading 5 year warranty

Virus Removal

EnviroKlenz technology has been tested and proven to remove & neutralize 99.9% of viruses in the air

Made in usa

All EnviroKlenz products are manufactured in the United States

Locking wheels

The Source Capture System is portable with locking castors

Unmatched CFM

The blower inside of the Source Capture System is capable of 250 CFM

Our technology
Real testing. Real results.
Specifications
DIMENSIONS

22ʺ: x Width: 15.5” x Depth: 15”

RATED AIR FLOW OF FAN

85, 150, 200, 250 CFM (FOR EACH SPEED)

CABINET MATERIAL

Powder coated house metal

NOISE LEVEL

54, 56, 59, 62 DB (FOR EACH SPEED)

FILTERS

EnviroKlenz 14x14x1 Cartridge HEPA Filter 14x14x3 5/8

ADDITIONAL INFORMATION

Direct source capture via extension arm and suction hose attachments
(2.5” diameter hose with a 4.5” diameter suction cone. Patented EnviroKlenz Technology media/cartridge HEPA filter combination tested and validated on removal of microorganisms at 99.9%

• Germicidal UVC lights
• Portable with locking castors
• Ability for multi-attachments (i.e. light) or workspace and built-in outlet for dental tools. Conveniently placed 10-amp outlet on system with 2 USB ports
• Made in the USA

SUCTION HOSE

2.5″ DIAMETER

TECHNICAL APPLICATIONS

• Dental Aerosols & Overspray
• Adhesive Glue Fumes
• Anesthesia Procedures
• General Laboratory Fumes & Dust
• And a variety of additional applications that create dust,
smoke, or other
airborne contaminants

VOLTAGE

AC115V 60Hz

NOISE DECIBEL

57dB (TESTED UNDER AMBIENT EVIRONMENT AND 6-9 INCHES DISTANCE FROM THE SUCTION HOOD)

ELECTRIC CURRENT

1AMP

UV LIGHT

TYPE  UV-C

WAVE LENGTH  254NM

POWER (W)  9W

LAMP TUBE LENGTH 5.7″

GLASS TUBE  OZONE-FREE QUARTZ GLASS

AVERAGE LIFETIME (h) >8000 (CONTINUOS USE)

The EnviroKlenz Source Capture Air System
